TIMER countdown

Warning timer with light and acoustic indication for industrial processes

TEMPORIZADOR
temporizador cuenta-atras
Temporizador avisador
temporizador-señalizador
temporizador
temporizador
  • Robust design for use in industrial environments
  • Cast aluminum metal box
  • Large start button for operating with gloves.

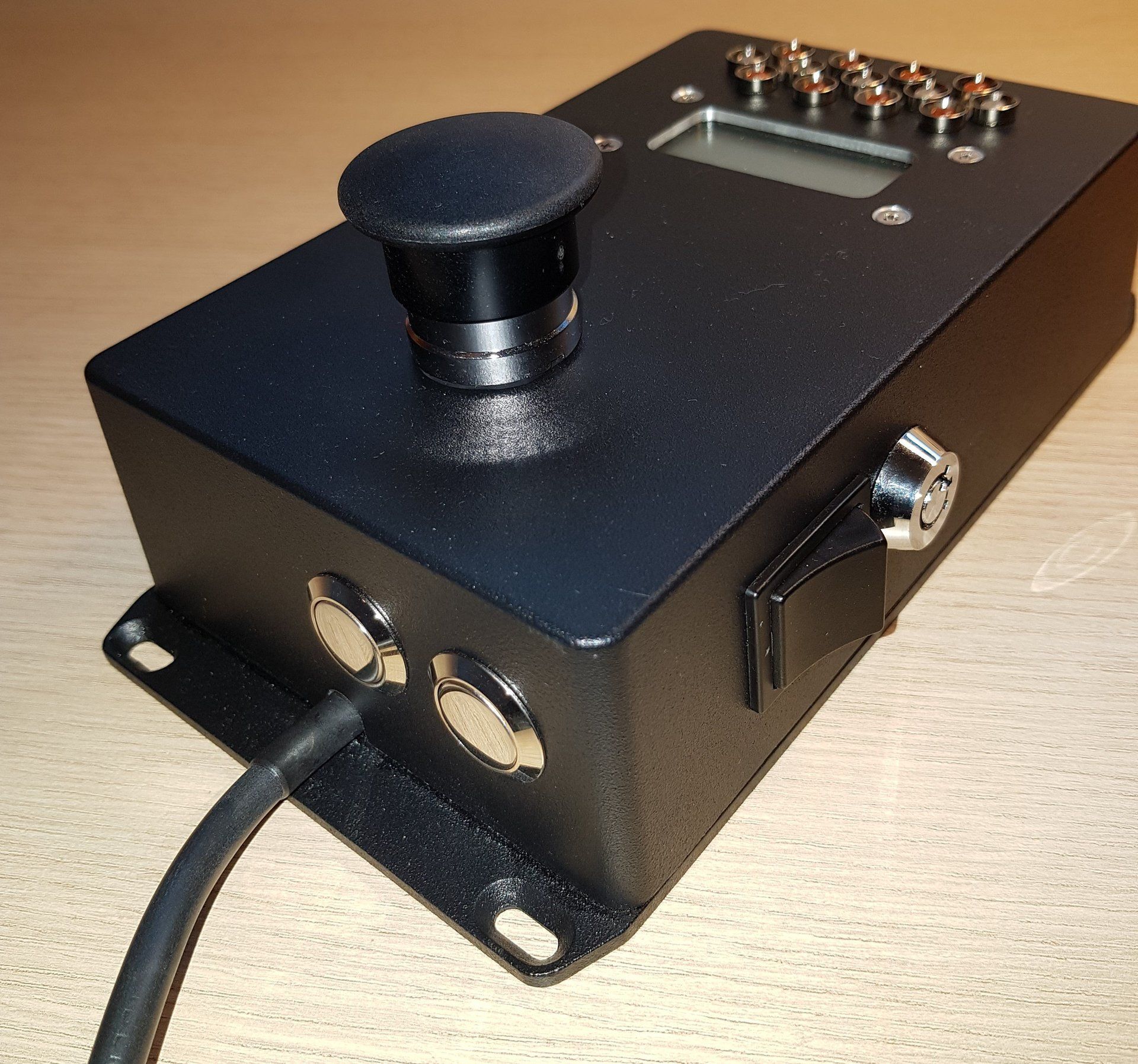

  • Adjustment of time and work mode, using metal buttons.
  • Display countdown on LCD screen

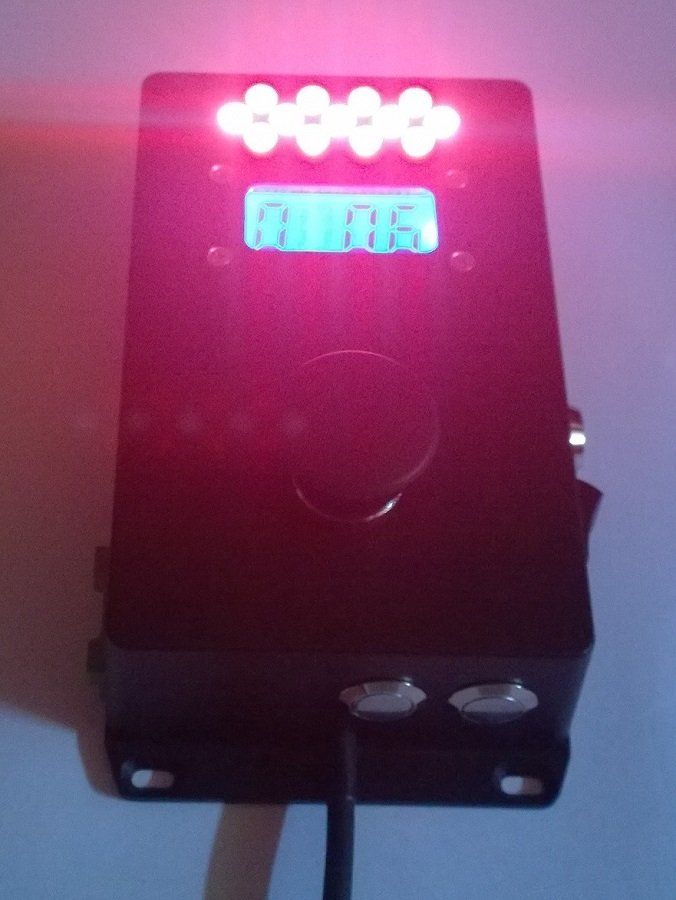

  • 2 Illuminated signs by high-brightness, adjustable LEDs.
  • Increasing acoustic signaling
  • Locking work and/or parameters with key.

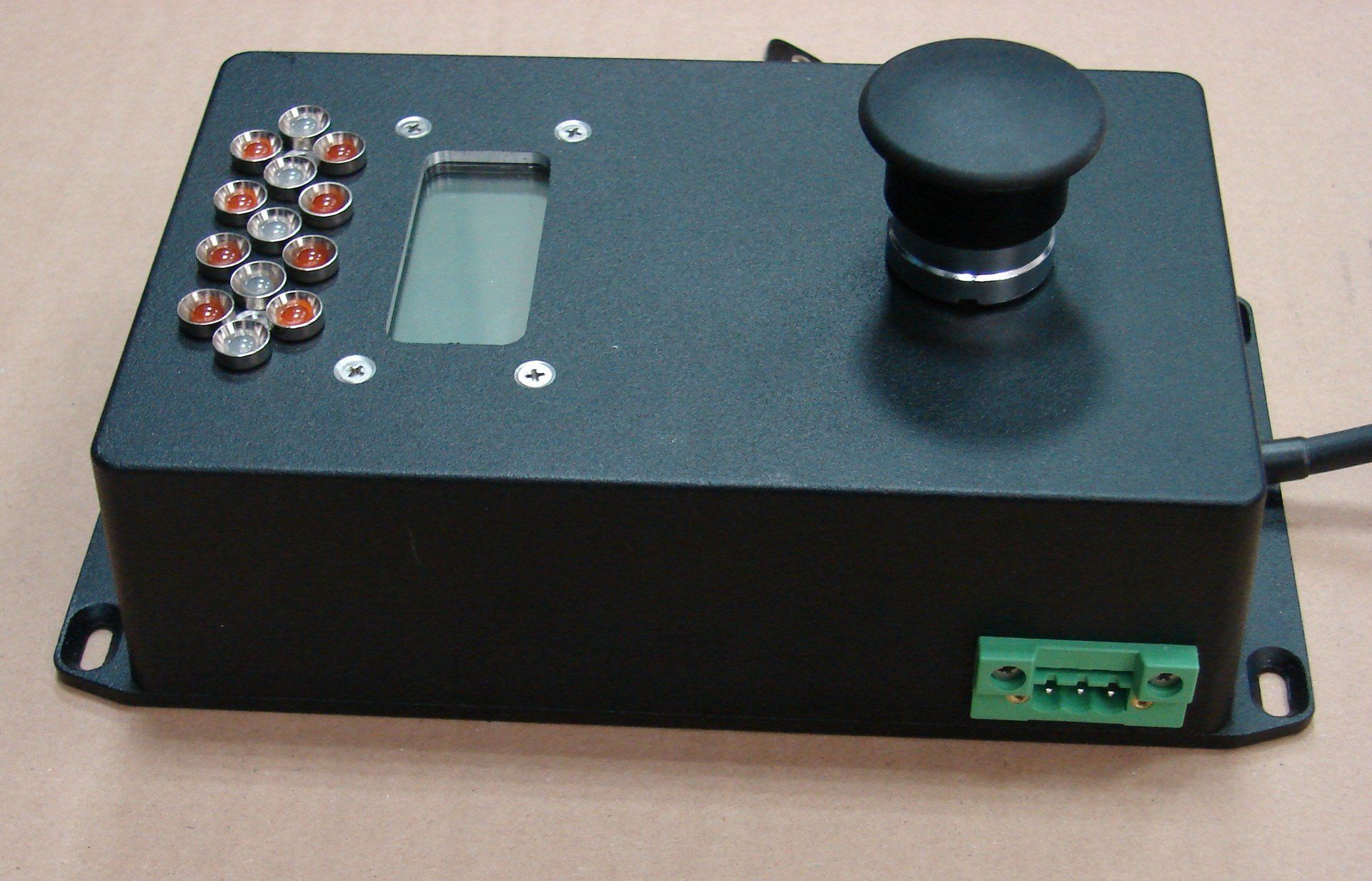

  • Auxiliary relay output
  • Magnetic base
  • Power supply 220 VAC
  • Measurements 250x150x60 mm

Price: €340

  • key option: €20
  • auxiliary output option: €20
  • magnetic base option: €15
(VAT not included)

Applications: Cyclic processes to mark and control man/machine time. Examples: baking, drying, casting, core manufacturing, electrolytic baths, etc.

Basic operation: The device consists of a countdown timer, with LCD display indication, and light and/or acoustic output. It has 4 working modes:

Mode 1: At the end of the countdown, the light warning (red LEDs) is activated. By pressing the start button, the warning light is deactivated and a new countdown cycle begins.

Mode 2: At the end of the countdown, the light warning (red LEDs) is activated. When you press the start button, the warning light is deactivated. By pressing the start button again, a new countdown cycle begins.

Mode 3: At the end of the countdown, the light warning (red LEDs) and the acoustic warning are activated. When you press the start button, the acoustic warning is deactivated. By pressing the start button again, the warning light is deactivated and a new countdown cycle begins.

Mode 4 production control: At the end of the countdown, the light warning (red LEDs) is activated and the handling time begins. By pressing the start button, the warning light is deactivated, the timing of the handling time ends and a new countdown cycle begins. If the handling time is exceeded during a cycle, the light warning goes from fixed to flashing and after a while the flashing frequency increases. You can add an acoustic warning and you can also program an intermediate time with a light warning (white LEDs).

You can configure the acoustic warning, the flashing frequency, the brightness, the auxiliary output, the maximum duration, etc. (D.download user manual for more information).

Product built by RICS ELECTRONICS in Barcelona, it is repairable and has spare parts for all its components.
